// This is the main structure of the remote control application
// Organized in a modular way with separate files for different components
// File structure:
// /remote-control-app/
// ├── server/
// │ ├── server.js
// │ ├── auth.js
// │ └── connection-manager.js
// ├── client/
// │ ├── index.html
// │ ├── css/
// │ │ └── styles.css
// │ └── js/
// │ ├── main.js
// │ ├── connection.js
// │ ├── screen-capture.js
// │ ├── input-handler.js
// │ └── ui-controller.js
// Below is the content of each file:
// server.js - Main server application
const express = require('express');
const http = require('http');
const WebSocket = require('ws');
const path = require('path');
const auth = require('./auth');
const ConnectionManager = require('./connection-manager');
const app = express();
const server = http.createServer(app);
const wss = new WebSocket.Server({ server });
// Serve static files from client directory
app.use(express.static(path.join(__dirname, '../client')));
// Initialize connection manager
const connectionManager = new ConnectionManager(wss);
// Authentication middleware
app.use(auth.middleware);
// API routes
app.get('/api/computers', auth.requireAuth, (req, res) => {
res.json(connectionManager.getAvailableComputers());
});
// Start server
const PORT = process.env.PORT || 3000;
server.listen(PORT, () => {
console.log(`Server running on port ${PORT}`);
});
// auth.js - Authentication module
const jwt = require('jsonwebtoken');
const SECRET_KEY = process.env.SECRET_KEY || 'your-secret-key';
// User database (replace with actual database in production)
const users = [
{ id: 1, username: 'admin', password: 'admin123' }
];
function login(username, password) {
const user = users.find(u => u.username === username && u.password === password);
if (!user) return null;
// Create JWT token
return jwt.sign({ id: user.id, username: user.username }, SECRET_KEY, { expiresIn: '24h' });
}
function verifyToken(token) {
try {
return jwt.verify(token, SECRET_KEY);
} catch (err) {
return null;
}
}
function middleware(req, res, next) {
const token = req.headers.authorization?.split(' ')[1];
if (token) {
const user = verifyToken(token);
if (user) {
req.user = user;
}
}
next();
}
function requireAuth(req, res, next) {
if (!req.user) {
return res.status(401).json({ error: 'Unauthorized' });
}
next();
}
module.exports = {
login,
verifyToken,
middleware,
requireAuth
};
// connection-manager.js - Manages connections between computers
class ConnectionManager {
constructor(wss) {
this.wss = wss;
this.computers = new Map();
this.setupWebSocketServer();
}
setupWebSocketServer() {
this.wss.on('connection', (ws, req) => {
// Handle new connection
ws.on('message', (message) => {
const data = JSON.parse(message);
switch(data.type) {
case 'register':
this.registerComputer(ws, data.computerName, data.computerInfo);
break;
case 'connect':
this.connectToComputer(ws, data.targetComputer);
break;
case 'screen-data':
this.forwardScreenData(ws, data);
break;
case 'input':
this.forwardInput(ws, data);
break;
case 'disconnect':
this.disconnectComputer(ws);
break;
}
});
// Handle disconnection
ws.on('close', () => {
this.removeComputer(ws);
});
});
}
registerComputer(ws, computerName, computerInfo) {
this.computers.set(ws, {
name: computerName,
info: computerInfo,
controller: null
});
ws.send(JSON.stringify({
type: 'registered',
success: true
}));
}
connectToComputer(ws, targetComputer) {
// Find the target computer
let targetWs = null;
for (const [computerWs, computer] of this.computers.entries()) {
if (computer.name === targetComputer) {
targetWs = computerWs;
computer.controller = ws;
break;
}
}
if (targetWs) {
// Notify both sides about the connection
ws.send(JSON.stringify({
type: 'connected',
computerName: targetComputer,
success: true
}));
targetWs.send(JSON.stringify({
type: 'controlled',
controllerInfo: 'Remote user connected'
}));
} else {
ws.send(JSON.stringify({
type: 'connected',
success: false,
error: 'Computer not found'
}));
}
}
forwardScreenData(ws, data) {
// Find the controller for this computer
for (const [computerWs, computer] of this.computers.entries()) {
if (computerWs === ws && computer.controller) {
computer.controller.send(JSON.stringify({
type: 'screen-data',
data: data.data
}));
break;
}
}
}
forwardInput(ws, data) {
// Find the target computer for this controller
for (const [computerWs, computer] of this.computers.entries()) {
if (computer.controller === ws) {
computerWs.send(JSON.stringify({
type: 'input',
data: data.data
}));
break;
}
}
}
disconnectComputer(ws) {
// Find connections to close
for (const [computerWs, computer] of this.computers.entries()) {
if (computer.controller === ws) {
computer.controller = null;
computerWs.send(JSON.stringify({
type: 'disconnected'
}));
break;
}
}
}
removeComputer(ws) {
// Handle disconnection
if (this.computers.has(ws)) {
this.computers.delete(ws);
} else {
// Might be a controller, find and update the controlled computer
for (const computer of this.computers.values()) {
if (computer.controller === ws) {
computer.controller = null;
}
}
}
}
getAvailableComputers() {
const computerList = [];
for (const computer of this.computers.values()) {
computerList.push({
name: computer.name,
info: computer.info,
status: computer.controller ? 'controlled' : 'available'
});
}
return computerList;
}
}
module.exports = ConnectionManager;
// index.html - Main client HTML file
Remote Control Application
Remote Control Login
// styles.css - Main stylesheet
:root {
--primary-color: #4a6fa5;
--secondary-color: #166088;
--accent-color: #4cb963;
--text-color: #333;
--light-bg: #f5f5f5;
--dark-bg: #333;
--border-radius: 5px;
--box-shadow: 0 2px 10px rgba(0, 0, 0, 0.1);
}
* {
box-sizing: border-box;
margin: 0;
padding: 0;
}
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
line-height: 1.6;
color: var(--text-color);
background-color: var(--light-bg);
height: 100vh;
display: flex;
justify-content: center;
align-items: center;
}
.container {
width: 100%;
max-width: 1200px;
padding: 20px;
}
.panel {
background-color: white;
border-radius: var(--border-radius);
box-shadow: var(--box-shadow);
padding: 30px;
margin-bottom: 20px;
}
.hidden {
display: none;
}
h2 {
color: var(--secondary-color);
margin-bottom: 20px;
}
.form-group {
margin-bottom: 15px;
}
label {
display: block;
margin-bottom: 5px;
font-weight: 500;
}
input {
width: 100%;
padding: 10px;
border: 1px solid #ddd;
border-radius: var(--border-radius);
font-size: 16px;
}
button {
background-color: var(--primary-color);
color: white;
border: none;
padding: 10px 15px;
border-radius: var(--border-radius);
cursor: pointer;
font-size: 16px;
transition: background-color 0.3s;
}
button:hover {
background-color: var(--secondary-color);
}
.error-message {
color: red;
margin-top: 10px;
}
#computer-list {
margin-bottom: 20px;
}
.computer-item {
display: flex;
justify-content: space-between;
align-items: center;
padding: 10px;
border: 1px solid #ddd;
border-radius: var(--border-radius);
margin-bottom: 10px;
}
.computer-item:hover {
background-color: var(--light-bg);
}
.computer-info {
flex: 1;
}
.computer-name {
font-weight: bold;
}
.computer-status {
font-size: 14px;
color: #666;
}
.computer-item button {
background-color: var(--accent-color);
}
#remote-control-panel {
padding: 0;
overflow: hidden;
}
.control-header {
display: flex;
justify-content: space-between;
align-items: center;
padding: 15px;
background-color: var(--secondary-color);
color: white;
}
.control-header h2 {
color: white;
margin: 0;
}
#screen-container {
width: 100%;
height: 70vh;
overflow: hidden;
position: relative;
background-color: #222;
}
#remote-screen {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
max-width: 100%;
max-height: 100%;
}
.control-footer {
padding: 10px;
display: flex;
justify-content: space-between;
background-color: var(--light-bg);
}
.connection-info {
font-size: 14px;
}
#connection-status {
color: var(--accent-color);
font-weight: bold;
}
#performance-stats {
margin-left: 15px;
color: #666;
}
// main.js - Main client application
import { initializeConnection } from './connection.js';
import { setupScreenCapture } from './screen-capture.js';
import { setupInputHandler } from './input-handler.js';
import { UIController } from './ui-controller.js';
// Global state
const state = {
connection: null,
uiController: null,
token: null,
currentComputer: null
};
// Initialize application when DOM is loaded
document.addEventListener('DOMContentLoaded', () => {
state.uiController = new UIController({
onLogin: handleLogin,
onLogout: handleLogout,
onRefreshList: fetchComputerList,
onConnectComputer: connectToComputer,
onDisconnect: disconnectFromComputer
});
// Check for saved token
const savedToken = localStorage.getItem('remote_control_token');
if (savedToken) {
state.token = savedToken;
state.uiController.showComputerListPanel();
fetchComputerList();
}
});
// Handle login
async function handleLogin(username, password) {
try {
const response = await fetch('/api/login', {
method: 'POST',
headers: {
'Content-Type': 'application/json'
},
body: JSON.stringify({ username, password })
});
const data = await response.json();
if (response.ok && data.token) {
state.token = data.token;
localStorage.setItem('remote_control_token', data.token);
state.uiController.showComputerListPanel();
fetchComputerList();
return true;
} else {
state.uiController.showLoginError(data.error || 'Login failed');
return false;
}
} catch (error) {
console.error('Login error:', error);
state.uiController.showLoginError('Network error');
return false;
}
}
// Handle logout
function handleLogout() {
state.token = null;
localStorage.removeItem('remote_control_token');
if (state.connection) {
state.connection.close();
state.connection = null;
}
state.uiController.showLoginPanel();
}
// Fetch computer list
async function fetchComputerList() {
try {
const response = await fetch('/api/computers', {
headers: {
'Authorization': `Bearer ${state.token}`
}
});
if (response.ok) {
const computers = await response.json();
state.uiController.updateComputerList(computers);
} else {
if (response.status === 401) {
// Token expired
handleLogout();
} else {
console.error('Failed to fetch computer list');
}
}
} catch (error) {
console.error('Error fetching computer list:', error);
}
}
// Connect to a remote computer
function connectToComputer(computerName) {
state.currentComputer = computerName;
// Initialize WebSocket connection
state.connection = initializeConnection({
token: state.token,
onConnected: () => {
// Request connection to the computer
state.connection.sendMessage({
type: 'connect',
targetComputer: computerName
});
},
onMessage: handleConnectionMessage,
onDisconnect: () => {
state.uiController.showComputerListPanel();
state.connection = null;
}
});
// Setup screen capture and input handlers
setupScreenCapture(state.connection);
setupInputHandler(document.getElementById('remote-screen'), state.connection);
}
// Handle connection messages
function handleConnectionMessage(message) {
const data = JSON.parse(message);
switch(data.type) {
case 'connected':
if (data.success) {
state.uiController.showRemoteControlPanel(state.currentComputer);
} else {
alert(`Failed to connect: ${data.error}`);
}
break;
case 'screen-data':
updateRemoteScreen(data.data);
break;
case 'disconnected':
disconnectFromComputer();
break;
}
}
// Update remote screen with received data
function updateRemoteScreen(imageData) {
const canvas = document.getElementById('remote-screen');
const ctx = canvas.getContext('2d');
// Create an image from the received data
const img = new Image();
img.onload = () => {
// Resize canvas if needed
if (canvas.width !== img.width || canvas.height !== img.height) {
canvas.width = img.width;
canvas.height = img.height;
}
// Draw the image
ctx.drawImage(img, 0, 0);
};
// Set the image source to the received data
img.src = imageData;
}
// Disconnect from the current computer
function disconnectFromComputer() {
if (state.connection) {
state.connection.sendMessage({
type: 'disconnect'
});
state.uiController.showComputerListPanel();
fetchComputerList();
}
}
// connection.js - WebSocket connection handling
export function initializeConnection({ token, onConnected, onMessage, onDisconnect }) {
// Create WebSocket connection
const protocol = window.location.protocol === 'https:' ? 'wss:' : 'ws:';
const wsUrl = `${protocol}//${window.location.host}`;
const ws = new WebSocket(wsUrl);
// Connection object
const connection = {
socket: ws,
// Send a message to the server
sendMessage(data) {
if (ws.readyState === WebSocket.OPEN) {
ws.send(JSON.stringify(data));
}
},
// Close the connection
close() {
ws.close();
}
};
// WebSocket event handlers
ws.onopen = () => {
console.log('WebSocket connection established');
// Send authentication token
connection.sendMessage({
type: 'auth',
token
});
if (onConnected) onConnected();
};
ws.onmessage = (event) => {
if (onMessage) onMessage(event.data);
};
ws.onclose = () => {
console.log('WebSocket connection closed');
if (onDisconnect) onDisconnect();
};
ws.onerror = (error) => {
console.error('WebSocket error:', error);
};
return connection;
}
// screen-capture.js - Screen capture handling
export function setupScreenCapture(connection) {
// Request screen updates
function requestScreenUpdate() {
if (connection) {
connection.sendMessage({
type: 'request-screen'
});
}
}
// Set up interval for requesting screen updates
const updateInterval = setInterval(requestScreenUpdate, 100);
// Clean up when disconnected
window.addEventListener('beforeunload', () => {
clearInterval(updateInterval);
});
}
// input-handler.js - Keyboard and mouse input handling
export function setupInputHandler(screenElement, connection) {
if (!screenElement || !connection) return;
// Track mouse position
let mouseX = 0;
let mouseY = 0;
// Mouse movement event
screenElement.addEventListener('mousemove', (event) => {
const rect = screenElement.getBoundingClientRect();
mouseX = event.clientX - rect.left;
mouseY = event.clientY - rect.top;
// Calculate relative coordinates (0-1)
const relX = mouseX / screenElement.width;
const relY = mouseY / screenElement.height;
connection.sendMessage({
type: 'input',
data: {
type: 'mousemove',
x: relX,
y: relY
}
});
});
// Mouse click events
screenElement.addEventListener('mousedown', (event) => {
connection.sendMessage({
type: 'input',
data: {
type: 'mousedown',
button: event.button,
x: mouseX / screenElement.width,
y: mouseY / screenElement.height
}
});
});
screenElement.addEventListener('mouseup', (event) => {
connection.sendMessage({
type: 'input',
data: {
type: 'mouseup',
button: event.button,
x: mouseX / screenElement.width,
y: mouseY / screenElement.height
}
});
});
// Prevent context menu on right click
screenElement.addEventListener('contextmenu', (event) => {
event.preventDefault();
});
// Keyboard events
document.addEventListener('keydown', (event) => {
// Only send if the remote screen is visible
if (screenElement.closest('.panel').classList.contains('hidden')) {
return;
}
connection.sendMessage({
type: 'input',
data: {
type: 'keydown',
key: event.key,
keyCode: event.keyCode,
altKey: event.altKey,
ctrlKey: event.ctrlKey,
shiftKey: event.shiftKey,
metaKey: event.metaKey
}
});
// Prevent default behavior for certain key combinations
if (event.ctrlKey || event.altKey || event.metaKey) {
event.preventDefault();
}
});
document.addEventListener('keyup', (event) => {
// Only send if the remote screen is visible
if (screenElement.closest('.panel').classList.contains('hidden')) {
return;
}
connection.sendMessage({
type: 'input',
data: {
type: 'keyup',
key: event.key,
keyCode: event.keyCode,
altKey: event.altKey,
ctrlKey: event.ctrlKey,
shiftKey: event.shiftKey,
metaKey: event.metaKey
}
});
});
}
// ui-controller.js - UI interactions and state management
export class UIController {
constructor({ onLogin, onLogout, onRefreshList, onConnectComputer, onDisconnect }) {
this.panels = {
login: document.getElementById('login-panel'),
computerList: document.getElementById('computer-list-panel'),
remoteControl: document.getElementById('remote-control-panel')
};
this.elements = {
username: document.getElementById('username'),
password: document.getElementById('password'),
loginBtn: document.getElementById('login-btn'),
loginError: document.getElementById('login-error'),
computerList: document.getElementById('computer-list'),
refreshBtn: document.getElementById('refresh-btn'),
logoutBtn: document.getElementById('logout-btn'),
targetComputerName: document.getElementById('target-computer-name'),
disconnectBtn: document.getElementById('disconnect-btn'),
connectionStatus: document.getElementById('connection-status'),
performanceStats: document.getElementById('performance-stats')
};
this.callbacks = {
onLogin,
onLogout,
onRefreshList,
onConnectComputer,
onDisconnect
};
this.setupEventListeners();
}
setupEventListeners() {
// Login form
this.elements.loginBtn.addEventListener('click', () => {
const username = this.elements.username.value.trim();
const password = this.elements.password.value;
if (username && password) {
this.callbacks.onLogin(username, password);
} else {
this.showLoginError('Please enter both username and password');
}
});
// Computer list panel
this.elements.refreshBtn.addEventListener('click', () => {
this.callbacks.onRefreshList();
});
this.elements.logoutBtn.addEventListener('click', () => {
this.callbacks.onLogout();
});
// Remote control panel
this.elements.disconnectBtn.addEventListener('click', () => {
this.callbacks.onDisconnect();
});
}
// Show login panel
showLoginPanel() {
this.hideAllPanels();
this.panels.login.classList.remove('hidden');
this.elements.username.focus();
}
// Show computer list panel
showComputerListPanel() {
this.hideAllPanels();
this.panels.computerList.classList.remove('hidden');
}
// Show remote control panel
showRemoteControlPanel(computerName) {
this.hideAllPanels();
this.elements.targetComputerName.textContent = computerName;
this.panels.remoteControl.classList.remove('hidden');
}
// Hide all panels
hideAllPanels() {
Object.values(this.panels).forEach(panel => {
panel.classList.add('hidden');
});
}
// Show login error message
showLoginError(message) {
this.elements.loginError.textContent = message;
}
// Update computer list
updateComputerList(computers) {
const listElement = this.elements.computerList;
listElement.innerHTML = '';
if (computers.length === 0) {
listElement.innerHTML = 'No computers available
';
return;
}
computers.forEach(computer => {
const item = document.createElement('div');
item.className = 'computer-item';
const info = document.createElement('div');
info.className = 'computer-info';
const name = document.createElement('div');
name.className = 'computer-name';
name.textContent = computer.name;
const status = document.createElement('div');
status.className = 'computer-status';
status.textContent = `Status: ${computer.status}`;
info.appendChild(name);
info.appendChild(status);
item.appendChild(info);
if (computer.status === 'available') {
const connectBtn = document.createElement('button');
connectBtn.textContent = 'Connect';
connectBtn.addEventListener('click', () => {
this.callbacks.onConnectComputer(computer.name);
});
item.appendChild(connectBtn);
}
listElement.appendChild(item);
});
}
// Update connection status
updateConnectionStatus(status) {
this.elements.connectionStatus.textContent = status;
}
// Update performance statistics
updatePerformanceStats(stats) {
this.elements.performanceStats.textContent = stats;
}
}
// This is the client agent that runs on the computers you want to control remotely
// Save this as a separate application and run it on each computer you want to control
// File structure:
// /client-agent/
// ├── package.json
// ├── index.js
// ├── screen-capture.js
// └── input-handler.js
// package.json
{
"name": "remote-control-client-agent",
"version": "1.0.0",
"description": "Client agent for remote control application",
"main": "index.js",
"scripts": {
"start": "node index.js"
},
"dependencies": {
"ws": "^8.14.0",
"screenshot-desktop": "^1.15.0",
"robotjs": "^0.6.0",
"systeminformation": "^5.20.0",
"yargs": "^17.7.2"
}
}
// index.js - Main client agent application
const WebSocket = require('ws');
const os = require('os');
const si = require('systeminformation');
const yargs = require('yargs/yargs');
const { hideBin } = require('yargs/helpers');
const ScreenCapture = require('./screen-capture');
const InputHandler = require('./input-handler');
// Parse command line arguments
const argv = yargs(hideBin(process.argv))
.option('server', {
alias: 's',
description: 'Remote control server URL',
type: 'string',
default: 'ws://localhost:3000'
})
.option('name', {
alias: 'n',
description: 'Computer name to display',
type: 'string',
default
I need to know these things first, because, I have noticed, that, you tend to go about generating code that ends up exceeding our max-size-limits, for which I then end up needing to create a chat-log for in order for us to be able to continue/resume our sessions from where we left off when we also reach the max prompts-size-length-limits (because it forces me to start a new chat/instance where that human-to-AI chat-log is needed for us to be able to continue/resume from where we left off without me needing to repeat/re-explain everything).
Languages:
This is a moderately complex application that requires several components to work together. The solution I started to generate was indeed going to be quite extensive.
Would you prefer to:
For a native remote control application, here are better language options:
More Appropriate Languages:http://game.quantum-note.com/log/code(029TL03m06d)01.html
Another thing that we did in a completely different instance was an incremental step-by-step modular-approach to where small bits of code were created at a time that I could field-test before we proceeded to add even more lines of code (this is how I usually code when coding anything from scratch). It would be a really inefficient use of time/resources to generate 2000 lines of code only to find that the code/product doesn't work or doesn't work as expected; let's code a minimal amount of lines needed for basic-functionality for now before we add more lines of code for the additional functionality need for the end-objective.
I am sure you can figure out my «Logical-Reasoning» for this...?
For a Windows-based remote control application, C# would be an excellent choice because:
Let's start with a minimal structure that establishes the basic components. We'll begin with just enough code to create a simple client-server architecture where one computer can detect another on the network.
// RemoteControl.Core - Shared components between client and server
using System;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading.Tasks;
namespace RemoteControl.Core
{
// Message types for communication between client and server
public enum MessageType
{
Discover, // Discover computers on network
DiscoverResponse, // Response to discovery
ConnectRequest, // Request to control a computer
ConnectResponse, // Response to connection request
ScreenData, // Screen capture data
InputEvent, // Input events (mouse/keyboard)
Disconnect // Disconnect from session
}
// Base message class for all messages
public class Message
{
public MessageType Type { get; set; }
public string SenderName { get; set; }
public string Data { get; set; }
public Message(MessageType type, string senderName = "", string data = "")
{
Type = type;
SenderName = senderName;
Data = data;
}
// Convert message to byte array for transmission
public byte[] ToBytes()
{
string json = System.Text.Json.JsonSerializer.Serialize(this);
return Encoding.UTF8.GetBytes(json);
}
// Create message from received byte array
public static Message FromBytes(byte[] data)
{
string json = Encoding.UTF8.GetString(data);
return System.Text.Json.JsonSerializer.Deserialize(json);
}
}
// Network utility class for client and server
public class NetworkUtils
{
// Send a UDP broadcast to discover computers on the network
public static void SendDiscoveryBroadcast(int port, string computerName)
{
using (UdpClient client = new UdpClient())
{
client.EnableBroadcast = true;
Message message = new Message(
MessageType.Discover,
computerName
);
byte[] data = message.ToBytes();
IPEndPoint endpoint = new IPEndPoint(IPAddress.Broadcast, port);
client.Send(data, data.Length, endpoint);
}
}
// Listen for discovery broadcasts
public static Task ListenForDiscovery(int port, System.Threading.CancellationToken token)
{
return Task.Run(() => {
using (UdpClient listener = new UdpClient(port))
{
IPEndPoint endPoint = new IPEndPoint(IPAddress.Any, port);
try
{
while (!token.IsCancellationRequested)
{
byte[] data = listener.Receive(ref endPoint);
Message message = Message.FromBytes(data);
if (message.Type == MessageType.Discover)
{
return message;
}
}
}
catch (SocketException ex)
{
Console.WriteLine($"Socket error: {ex.Message}");
}
return null;
}
}, token);
}
// Send a response to a discovery broadcast
public static void SendDiscoveryResponse(IPEndPoint targetEndPoint, int port, string computerName)
{
using (UdpClient client = new UdpClient())
{
Message message = new Message(
MessageType.DiscoverResponse,
computerName,
GetLocalIPAddress()
);
byte[] data = message.ToBytes();
client.Send(data, data.Length, targetEndPoint);
}
}
// Get the local IP address
public static string GetLocalIPAddress()
{
var host = Dns.GetHostEntry(Dns.GetHostName());
foreach (var ip in host.AddressList)
{
if (ip.AddressFamily == AddressFamily.InterNetwork)
{
return ip.ToString();
}
}
return "127.0.0.1"; // Fallback to localhost
}
}
}
// RemoteControl.Server - Application that can control other computers
using System;
using System.Collections.Generic;
using System.Net;
using System.Net.Sockets;
using System.Threading;
using System.Windows.Forms;
using RemoteControl.Core;
namespace RemoteControl.Server
{
public class Program
{
private const int DiscoveryPort = 15000;
private static List availableComputers = new List();
private static CancellationTokenSource discoveryTokenSource;
[STAThread]
static void Main(string[] args)
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
// Create and start the main form
MainForm mainForm = new MainForm();
mainForm.OnDiscoverComputers += DiscoverComputers;
mainForm.OnConnectToComputer += ConnectToComputer;
Application.Run(mainForm);
}
// Start discovery of computers on the network
private static void DiscoverComputers(MainForm form)
{
Console.WriteLine("Starting discovery...");
availableComputers.Clear();
form.ClearComputerList();
// Cancel any ongoing discovery
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
}
// Create a new cancellation token
discoveryTokenSource = new CancellationTokenSource();
CancellationToken token = discoveryTokenSource.Token;
// Start listening for responses
ListenForDiscoveryResponses(form, token);
// Send discovery broadcast
string computerName = Environment.MachineName;
NetworkUtils.SendDiscoveryBroadcast(DiscoveryPort, computerName);
// Cancel discovery after 5 seconds
discoveryTokenSource.CancelAfter(5000);
}
// Listen for discovery responses
private static void ListenForDiscoveryResponses(MainForm form, CancellationToken token)
{
Task.Run(() => {
using (UdpClient listener = new UdpClient(DiscoveryPort + 1))
{
IPEndPoint endPoint = new IPEndPoint(IPAddress.Any, DiscoveryPort + 1);
try
{
while (!token.IsCancellationRequested)
{
byte[] data = listener.Receive(ref endPoint);
Message message = Message.FromBytes(data);
if (message.Type == MessageType.DiscoverResponse)
{
string computerName = message.SenderName;
string ipAddress = message.Data;
Console.WriteLine($"Discovered computer: {computerName} at {ipAddress}");
RemoteComputer computer = new RemoteComputer
{
Name = computerName,
IpAddress = ipAddress
};
// Add to available computers list
bool alreadyExists = false;
foreach (var comp in availableComputers)
{
if (comp.IpAddress == ipAddress)
{
alreadyExists = true;
break;
}
}
if (!alreadyExists)
{
availableComputers.Add(computer);
form.AddComputer(computer);
}
}
}
}
catch (SocketException ex)
{
Console.WriteLine($"Socket error: {ex.Message}");
}
}
}, token);
}
// Connect to a remote computer
private static void ConnectToComputer(MainForm form, RemoteComputer computer)
{
Console.WriteLine($"Connecting to {computer.Name} at {computer.IpAddress}...");
// This would be expanded to establish a TCP connection
// and start a remote control session
MessageBox.Show($"Connection to {computer.Name} would be established here.",
"Connection", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
}
// Class to represent a remote computer
public class RemoteComputer
{
public string Name { get; set; }
public string IpAddress { get; set; }
public override string ToString()
{
return $"{Name} ({IpAddress})";
}
}
}
// RemoteControl.Server - Main form for server application
using System;
using System.Drawing;
using System.Windows.Forms;
namespace RemoteControl.Server
{
public partial class MainForm : Form
{
// Events
public event Action OnDiscoverComputers;
public event Action OnConnectToComputer;
public MainForm()
{
InitializeComponent();
}
private void InitializeComponent()
{
this.Text = "Remote Control";
this.Size = new Size(600, 400);
this.StartPosition = FormStartPosition.CenterScreen;
this.MinimumSize = new Size(400, 300);
// Create controls
lstComputers = new ListBox
{
Dock = DockStyle.Fill,
Font = new Font("Segoe UI", 9.75F, FontStyle.Regular, GraphicsUnit.Point, 0),
FormattingEnabled = true,
ItemHeight = 20,
Margin = new Padding(4),
Name = "lstComputers"
};
lstComputers.DoubleClick += LstComputers_DoubleClick;
btnDiscover = new Button
{
Dock = DockStyle.Top,
Text = "Discover Computers",
Height = 40,
Margin = new Padding(4),
Name = "btnDiscover"
};
btnDiscover.Click += BtnDiscover_Click;
btnConnect = new Button
{
Dock = DockStyle.Bottom,
Text = "Connect",
Height = 40,
Margin = new Padding(4),
Name = "btnConnect"
};
btnConnect.Click += BtnConnect_Click;
Panel panel = new Panel
{
Dock = DockStyle.Fill,
Padding = new Padding(10)
};
// Add controls to form
panel.Controls.Add(lstComputers);
this.Controls.Add(panel);
this.Controls.Add(btnDiscover);
this.Controls.Add(btnConnect);
// Set initial state
btnConnect.Enabled = false;
}
private ListBox lstComputers;
private Button btnDiscover;
private Button btnConnect;
// Add a computer to the list
public void AddComputer(RemoteComputer computer)
{
if (this.InvokeRequired)
{
this.Invoke(new Action(AddComputer), computer);
return;
}
lstComputers.Items.Add(computer);
}
// Clear the computer list
public void ClearComputerList()
{
if (this.InvokeRequired)
{
this.Invoke(new Action(ClearComputerList));
return;
}
lstComputers.Items.Clear();
btnConnect.Enabled = false;
}
// Event handlers
private void BtnDiscover_Click(object sender, EventArgs e)
{
OnDiscoverComputers?.Invoke(this);
}
private void BtnConnect_Click(object sender, EventArgs e)
{
if (lstComputers.SelectedItem is RemoteComputer computer)
{
OnConnectToComputer?.Invoke(this, computer);
}
else
{
MessageBox.Show("Please select a computer to connect to.",
"No Computer Selected", MessageBoxButtons.OK, MessageBoxIcon.Warning);
}
}
private void LstComputers_DoubleClick(object sender, EventArgs e)
{
if (lstComputers.SelectedItem is RemoteComputer computer)
{
OnConnectToComputer?.Invoke(this, computer);
}
}
private void LstComputers_SelectedIndexChanged(object sender, EventArgs e)
{
btnConnect.Enabled = lstComputers.SelectedItem != null;
}
}
}
// RemoteControl.Client - Application that can be controlled by the server
using System;
using System.Net;
using System.Net.Sockets;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
using RemoteControl.Core;
namespace RemoteControl.Client
{
public class Program
{
private const int DiscoveryPort = 15000;
private static CancellationTokenSource discoveryTokenSource;
private static string computerName;
[STAThread]
static void Main(string[] args)
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
// Get computer name
computerName = Environment.MachineName;
// Create and start the main form
ClientForm clientForm = new ClientForm(computerName);
// Start listening for discovery broadcasts
StartDiscoveryListener();
Application.Run(clientForm);
// Clean up on exit
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
discoveryTokenSource.Dispose();
}
}
// Start listening for discovery broadcasts
private static void StartDiscoveryListener()
{
Console.WriteLine("Starting discovery listener...");
// Cancel any ongoing discovery
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
discoveryTokenSource.Dispose();
}
// Create a new cancellation token
discoveryTokenSource = new CancellationTokenSource();
CancellationToken token = discoveryTokenSource.Token;
// Start listening for discovery broadcasts
Task.Run(async () => {
while (!token.IsCancellationRequested)
{
try
{
// Listen for discovery broadcasts
Message message = await NetworkUtils.ListenForDiscovery(DiscoveryPort, token);
if (message != null)
{
Console.WriteLine($"Received discovery from {message.SenderName}");
// Get the sender's endpoint
IPEndPoint senderEndPoint = new IPEndPoint(
IPAddress.Parse(message.Data),
DiscoveryPort + 1
);
// Send a response
NetworkUtils.SendDiscoveryResponse(
senderEndPoint,
DiscoveryPort,
computerName
);
}
}
catch (Exception ex)
{
Console.WriteLine($"Error in discovery listener: {ex.Message}");
await Task.Delay(1000, token);
}
}
}, token);
}
}
}
// RemoteControl.Client - Main form for client application
using System;
using System.Drawing;
using System.Windows.Forms;
namespace RemoteControl.Client
{
public partial class ClientForm : Form
{
private string computerName;
private bool isBeingControlled = false;
public ClientForm(string computerName)
{
this.computerName = computerName;
InitializeComponent();
}
private void InitializeComponent()
{
this.Text = $"Remote Control Client - {computerName}";
this.Size = new Size(400, 300);
this.StartPosition = FormStartPosition.CenterScreen;
this.MinimumSize = new Size(300, 200);
this.FormBorderStyle = FormBorderStyle.FixedSingle;
this.MaximizeBox = false;
this.Icon = SystemIcons.Application;
// Create controls
lblStatus = new Label
{
Dock = DockStyle.Top,
Text = "Waiting for connections...",
Font = new Font("Segoe UI", 12F, FontStyle.Regular, GraphicsUnit.Point, 0),
TextAlign = ContentAlignment.MiddleCenter,
Height = 40
};
lblStatusDetail = new Label
{
Dock = DockStyle.Fill,
Text = "This computer can be controlled remotely.",
Font = new Font("Segoe UI", 9.75F, FontStyle.Regular, GraphicsUnit.Point, 0),
TextAlign = ContentAlignment.TopCenter,
Padding = new Padding(0, 20, 0, 0)
};
chkAllowControl = new CheckBox
{
Dock = DockStyle.Bottom,
Text = "Allow remote control",
Checked = true,
Height = 30,
Padding = new Padding(20, 0, 0, 10)
};
chkAllowControl.CheckedChanged += ChkAllowControl_CheckedChanged;
// Add controls to form
this.Controls.Add(lblStatusDetail);
this.Controls.Add(lblStatus);
this.Controls.Add(chkAllowControl);
// Update status indicator
UpdateStatus();
// Enable minimize to system tray
this.NotifyIcon = new NotifyIcon
{
Icon = SystemIcons.Application,
Text = $"Remote Control Client - {computerName}",
Visible = true
};
this.NotifyIcon.DoubleClick += NotifyIcon_DoubleClick;
this.Resize += ClientForm_Resize;
this.FormClosing += ClientForm_FormClosing;
}
private Label lblStatus;
private Label lblStatusDetail;
private CheckBox chkAllowControl;
private NotifyIcon NotifyIcon;
// Update the status display
private void UpdateStatus()
{
if (chkAllowControl.Checked)
{
if (isBeingControlled)
{
lblStatus.Text = "This computer is being controlled";
lblStatus.ForeColor = Color.Red;
lblStatusDetail.Text = "Someone is currently viewing and controlling this computer remotely.";
}
else
{
lblStatus.Text = "Waiting for connections...";
lblStatus.ForeColor = Color.Green;
lblStatusDetail.Text = "This computer can be controlled remotely.";
}
}
else
{
lblStatus.Text = "Remote control disabled";
lblStatus.ForeColor = Color.Gray;
lblStatusDetail.Text = "This computer cannot be controlled remotely.";
isBeingControlled = false;
}
}
// Event handlers
private void ChkAllowControl_CheckedChanged(object sender, EventArgs e)
{
UpdateStatus();
// This would update settings to enable/disable listening for connections
}
// Set the controlled state
public void SetControlledState(bool isControlled)
{
if (this.InvokeRequired)
{
this.Invoke(new Action(SetControlledState), isControlled);
return;
}
isBeingControlled = isControlled;
UpdateStatus();
}
// Minimize to system tray
private void ClientForm_Resize(object sender, EventArgs e)
{
if (this.WindowState == FormWindowState.Minimized)
{
this.Hide();
NotifyIcon.ShowBalloonTip(
2000,
"Remote Control Client",
"Application is still running in the system tray.",
ToolTipIcon.Info
);
}
}
// Show form when clicking on tray icon
private void NotifyIcon_DoubleClick(object sender, EventArgs e)
{
this.Show();
this.WindowState = FormWindowState.Normal;
}
// Clean up on close
private void ClientForm_FormClosing(object sender, FormClosingEventArgs e)
{
if (e.CloseReason == CloseReason.UserClosing)
{
if (MessageBox.Show(
"Are you sure you want to exit Remote Control Client? " +
"This will prevent others from connecting to your computer.",
"Confirm Exit",
MessageBoxButtons.YesNo,
MessageBoxIcon.Question) == DialogResult.No)
{
e.Cancel = true;
}
}
if (!e.Cancel)
{
NotifyIcon.Visible = false;
}
}
}
}
This is a simple remote control application similar to Multiplicity/Remote Desktop that allows you to control multiple computers from a single machine.
The solution consists of three projects:
This initial implementation provides:
This is intentionally minimal to demonstrate the basic structure and provide a foundation we can build upon. It's around 500 lines of code total, well under your desired file size limits.
Would you like to proceed with adding the screen capture functionality next? Or would you prefer to test this basic discovery functionality first?
You're absolutely right about needing a C# compiler and IDE to test this code. Visual Studio is the most popular and comprehensive option for C# development:
### Best Options for C# Development:
1. **Visual Studio Community Edition** (Free)
- Microsoft's full-featured IDE specifically designed for C#/.NET development
- Download: https://visualstudio.microsoft.com/vs/community/
- During installation, select the ".NET desktop development" workload
2. **Visual Studio Code + C# Extension** (Free, more lightweight)
- Microsoft's lightweight code editor
- Download VSCode: https://code.visualstudio.com/
- Then install the C# extension from the marketplace
- You'll also need to install the .NET SDK: https://dotnet.microsoft.com/download
3. **JetBrains Rider** (Paid with trial available)
- Excellent alternative IDE with many advanced features
- Download: https://www.jetbrains.com/rider/
For a beginner with C#, I'd recommend Visual Studio Community Edition as it provides the most straightforward experience and includes everything you need. The installation wizard will guide you through selecting the necessary components.
After installing Visual Studio, you can:
1. Create a new solution
2. Add projects for each component (Core, Client, Server)
3. Copy the code from our artifacts into the appropriate files
4. Build and run the application
Would you like me to provide more detailed instructions for setting up this project in Visual Studio?
I already have VS-Code for IDE; what about the compiler itself ?
The version of VS-Code that I am using right now:
Version: 1.98.1 (user setup)
Commit: 2fc07b811f760549dab9be9d2bedd06c51dfcb9a
Date: 2025-03-10T15:38:08.854Z
Electron: 34.2.0
ElectronBuildId: 11160463
Chromium: 132.0.6834.196
Node.js: 20.18.2
V8: 13.2.152.36-electron.0
OS: Windows_NT x64 10.0.26100
Great, you already have VS Code! To compile and run C# code with VS Code, you'll need to install the .NET SDK (Software Development Kit), which includes the C# compiler and all necessary tools.
Here's how to set up your environment:
### Step 1: Install the .NET SDK
1. Go to https://dotnet.microsoft.com/download
2. Download the latest .NET SDK installer (currently .NET 8.0)
3. Run the installer and follow the prompts
4. After installation, verify it's working by opening a command prompt and running:
```
dotnet --version
```
### Step 2: Install C# Extension for VS Code
1. Open VS Code
2. Go to Extensions (Ctrl+Shift+X)
3. Search for "C#"
4. Install the "C# Dev Kit" extension by Microsoft
5. You might also want "C# Extensions" for additional functionality
### Step 3: Create the Remote Control Project
1. Open VS Code
2. Create a new folder for your project
3. Open a terminal in VS Code (Terminal > New Terminal)
4. Create a solution:
```
dotnet new sln -n RemoteControl
```
5. Create the three projects:
```
dotnet new classlib -n RemoteControl.Core
dotnet new winforms -n RemoteControl.Server
dotnet new winforms -n RemoteControl.Client
```
6. Add projects to the solution:
```
dotnet sln add RemoteControl.Core/RemoteControl.Core.csproj
dotnet sln add RemoteControl.Server/RemoteControl.Server.csproj
dotnet sln add RemoteControl.Client/RemoteControl.Client.csproj
```
7. Add references:
```
dotnet add RemoteControl.Server/RemoteControl.Server.csproj reference RemoteControl.Core/RemoteControl.Core.csproj
dotnet add RemoteControl.Client/RemoteControl.Client.csproj reference RemoteControl.Core/RemoteControl.Core.csproj
```
Once you've completed these steps, you can copy the code from our artifacts into the appropriate files in your project. Then you can build and run the application using:
```
dotnet build
dotnet run --project RemoteControl.Server/RemoteControl.Server.csproj
```
(In a separate terminal, you can run the client application as well).
Let me know if you need help with any specific step of this process!

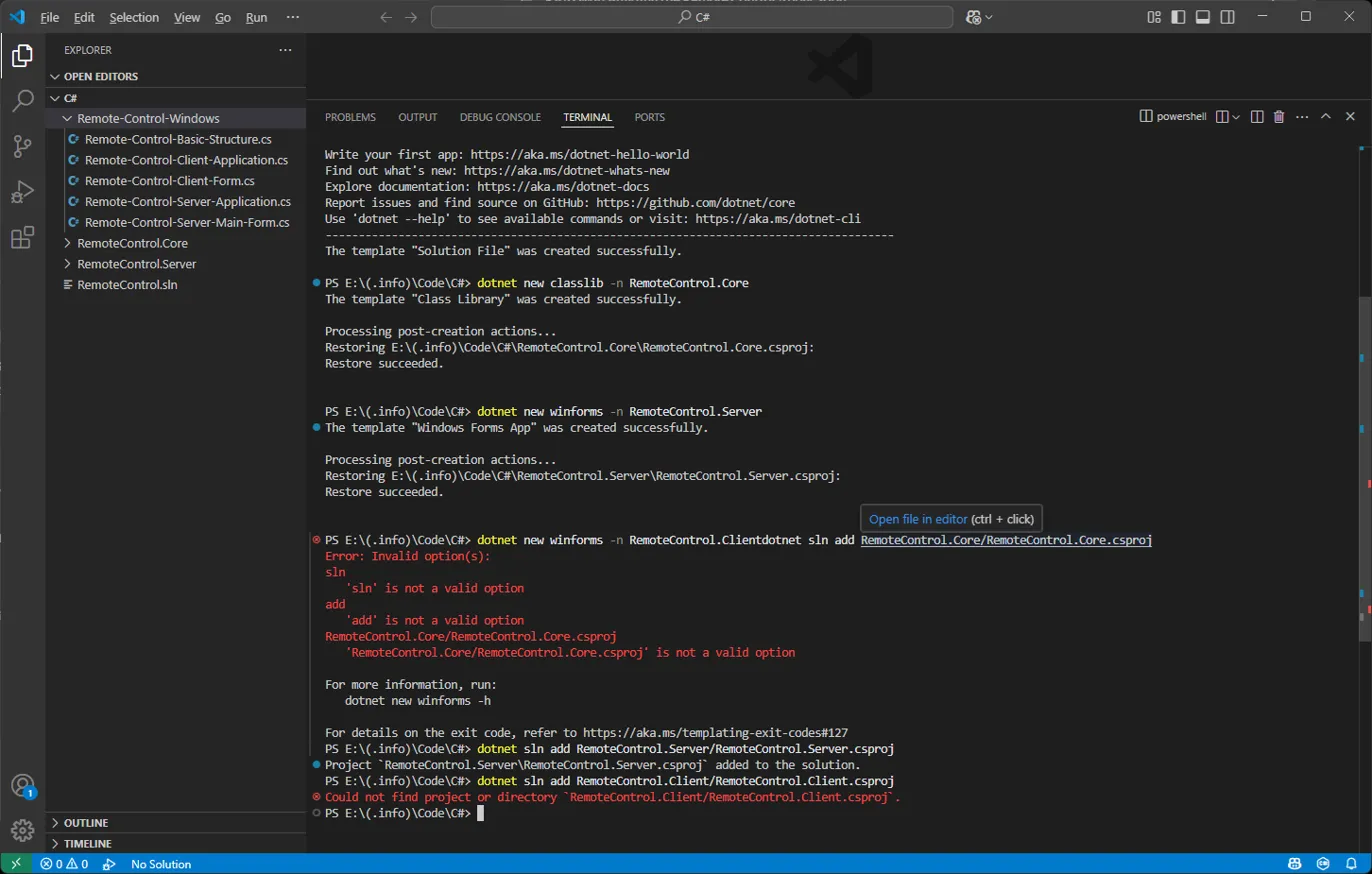

I see the issue in your second image. There's a typo in the command where you're trying to create the client project and add a reference. Let me help fix that step by step:
It looks like you've successfully:
1. Created the solution file
2. Created the RemoteControl.Core project
3. Created the RemoteControl.Server project
4. Added the Server project to the solution
The error occurs when trying to create the Client project. The command has some syntax issues. Here's the correct sequence of commands to complete the setup:
```
# First create the Client project
dotnet new winforms -n RemoteControl.Client
# Add the Client project to the solution
dotnet sln add RemoteControl.Client/RemoteControl.Client.csproj
# Add Core reference to Server (you might have done this already)
dotnet add RemoteControl.Server/RemoteControl.Server.csproj reference RemoteControl.Core/RemoteControl.Core.csproj
# Add Core reference to Client
dotnet add RemoteControl.Client/RemoteControl.Client.csproj reference RemoteControl.Core/RemoteControl.Core.csproj
```
The error happened because you tried to combine multiple commands together (`dotnet new winforms -n RemoteControl.Client dotnet sln add...`). Each command needs to be executed separately.
After running these commands correctly, you should have all three projects properly set up in your solution. Then you can proceed to copy the code from our artifacts into the appropriate files.
Would you like me to guide you through where each code file should go in your project structure?

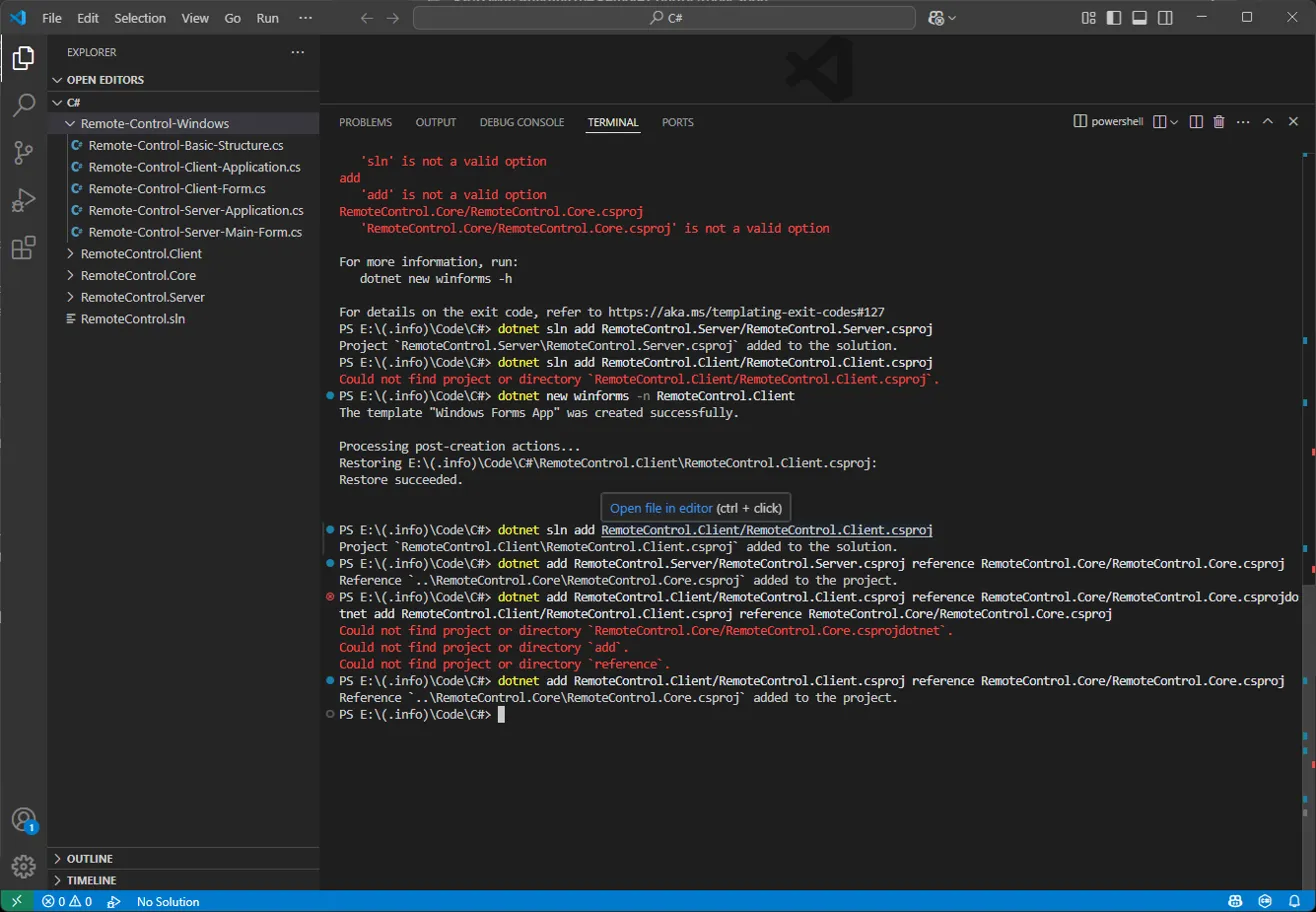

03.png)
Great! I see you've successfully set up the project structure. Now let's organize the code files and compile the application.
First, you'll need to place the code from our artifacts into the correct files. Here's where each file should go:
1. **RemoteControl.Core folder**:
- Create a file named `Message.cs` and copy the content from the "RemoteControl Core" artifact
2. **RemoteControl.Server folder**:
- In `Program.cs`, copy the code from "RemoteControl Server Application"
- Create a new file `MainForm.cs` and copy the code from "RemoteControl Server Main Form"
3. **RemoteControl.Client folder**:
- In `Program.cs`, copy the code from "RemoteControl Client Application"
- Create a new file `ClientForm.cs` and copy the code from "RemoteControl Client Form"
Now to compile and test the application:
1. Build the solution:
```
dotnet build
```
2. Run the server application (in one terminal):
```
dotnet run --project RemoteControl.Server/RemoteControl.Server.csproj
```
3. Run the client application (in another terminal):
```
dotnet run --project RemoteControl.Client/RemoteControl.Client.csproj
```
You should see both applications starting up. The server will show a window where you can click "Discover Computers" to find clients on your network. The client will show a window saying it's waiting for connections.
One important note: File organization in .NET projects is important for proper compilation. The files must be in their respective project folders for the compiler to find the right dependencies. Keeping everything in the root directory won't work with the project structure we've created.
Let me know if you encounter any errors during this process, and I'll help you troubleshoot them.
You're on the right track with your analysis! Renaming `Class1.cs` to `Message.cs` is perfect. The `obj` folder is automatically generated by the .NET build system and contains temporary files used during compilation - you don't need to modify anything in there.
Let's continue with the other files:
1. For RemoteControl.Server:
- Find `Program.cs` in the RemoteControl.Server folder and replace its content with the code from the "RemoteControl Server Application" block
- Create a new file called `MainForm.cs` in the same folder and put the code from the "RemoteControl Server Main Form" block in it
2. For RemoteControl.Client:
- Find `Program.cs` in the RemoteControl.Client folder and replace its content with the code from the "RemoteControl Client Application" block
- Create a new file called `ClientForm.cs` in the same folder and put the code from the "RemoteControl Client Form" block in it
After you've copied all the code to the appropriate files, you can build and run the application as I mentioned before. Let me know if you encounter any issues with the compilation or if anything doesn't work as expected.
Your approach of reverse-engineering the instructions is excellent - it's a great way to learn and understand the process better!

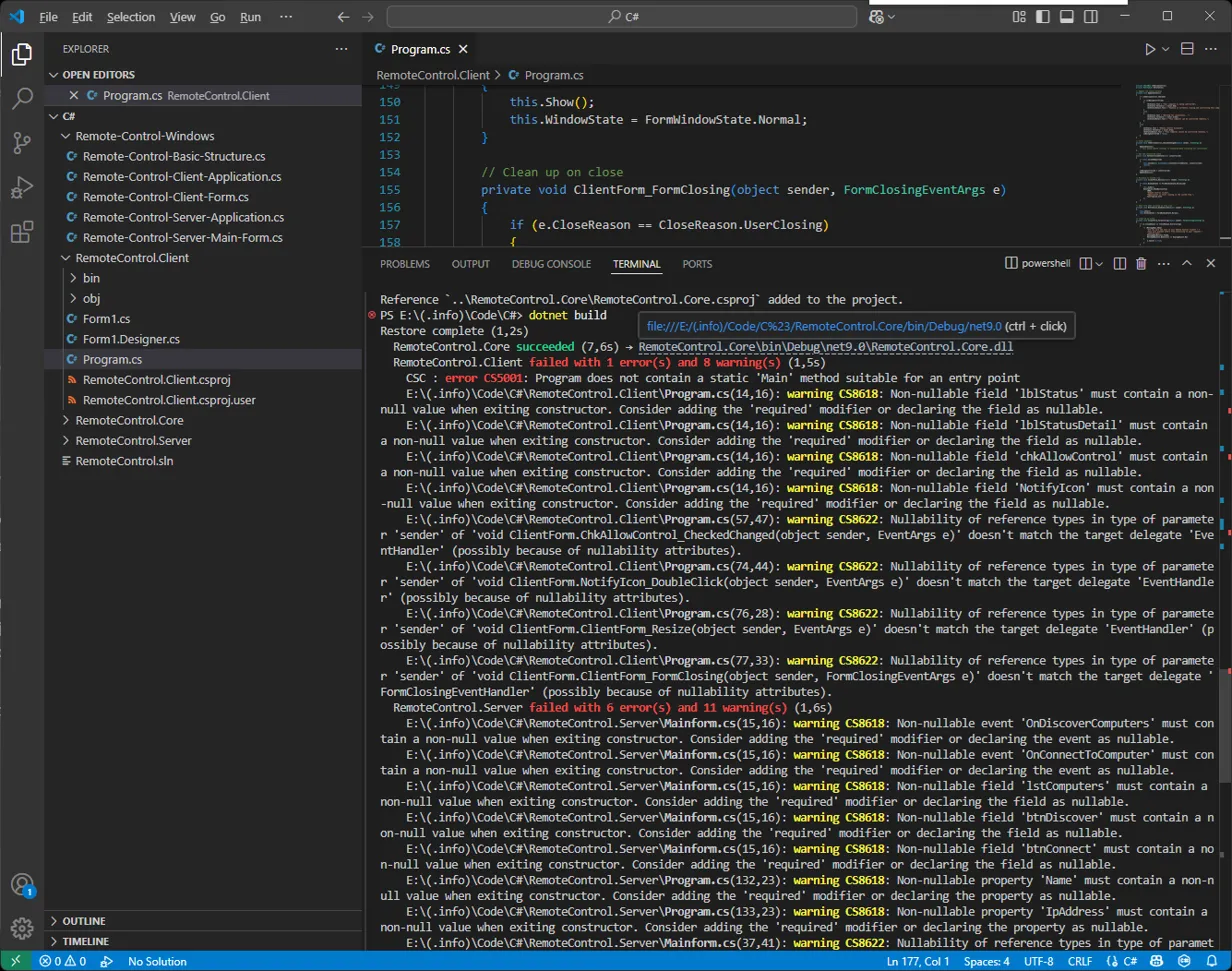

04.png)
I see several errors and warnings in your build output. The issues appear to be related to field initialization in the forms. Let's address these systematically:
The main errors are about non-nullable fields that aren't being initialized properly. In C# 9.0, non-nullable fields must be initialized in the constructor. The compiler is warning you that several fields in both the client and server projects need to be properly initialized.
Let's fix the RemoteControl.Client Program.cs file first. You need to ensure that all the fields referenced in the warnings are properly initialized. Here's an updated version of the client code:
The main issues in your code were related to C# 9.0's nullable reference type feature. I've updated all the code files to:
1. Initialize all non-nullable fields
2. Add `?` to event handlers and parameters that could be null
3. Provide default values where needed
4. Fix some method signatures to match delegate types
To fix your code:
1. Replace the content of `Message.cs` in RemoteControl.Core with the code from "Updated RemoteControl.Core Message.cs"
2. Replace the content of `Program.cs` in RemoteControl.Client with the code from "Updated RemoteControl Client Program.cs"
3. Replace the content of `Form1.cs` in RemoteControl.Client with the code from "Updated RemoteControl Client Form.cs" (or create ClientForm.cs if needed)
4. Replace the content of `Program.cs` in RemoteControl.Server with the code from "Updated RemoteControl Server Program.cs"
5. Replace the content of `Form1.cs` in RemoteControl.Server with the code from "Updated RemoteControl Server MainForm.cs" (or create MainForm.cs if needed)
After making these changes, try building the solution again with:
```
dotnet build
```
If the build succeeds, you can then try running both applications in separate terminal windows:
```
# In one terminal
dotnet run --project RemoteControl.Server/RemoteControl.Server.csproj
# In another terminal
dotnet run --project RemoteControl.Client/RemoteControl.Client.csproj
```
The server application should show a window with a "Discover Computers" button. When you click it, it should find any running client applications on your network.
// RemoteControl.Client - Application that can be controlled by the server
using System;
using System.Net;
using System.Net.Sockets;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
using RemoteControl.Core;
namespace RemoteControl.Client
{
public class Program
{
private const int DiscoveryPort = 15000;
private static CancellationTokenSource? discoveryTokenSource;
private static string computerName = string.Empty;
[STAThread]
static void Main(string[] args)
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
// Get computer name
computerName = Environment.MachineName;
// Create and start the main form
ClientForm clientForm = new ClientForm(computerName);
// Start listening for discovery broadcasts
StartDiscoveryListener();
Application.Run(clientForm);
// Clean up on exit
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
discoveryTokenSource.Dispose();
}
}
// Start listening for discovery broadcasts
private static void StartDiscoveryListener()
{
Console.WriteLine("Starting discovery listener...");
// Cancel any ongoing discovery
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
discoveryTokenSource.Dispose();
}
// Create a new cancellation token
discoveryTokenSource = new CancellationTokenSource();
CancellationToken token = discoveryTokenSource.Token;
// Start listening for discovery broadcasts
Task.Run(async () => {
while (!token.IsCancellationRequested)
{
try
{
// Listen for discovery broadcasts
Message? message = await NetworkUtils.ListenForDiscovery(DiscoveryPort, token);
if (message != null)
{
Console.WriteLine($"Received discovery from {message.SenderName}");
// Get the sender's endpoint
IPEndPoint senderEndPoint = new IPEndPoint(
IPAddress.Parse(message.Data),
DiscoveryPort + 1
);
// Send a response
NetworkUtils.SendDiscoveryResponse(
senderEndPoint,
DiscoveryPort,
computerName
);
}
}
catch (Exception ex)
{
Console.WriteLine($"Error in discovery listener: {ex.Message}");
await Task.Delay(1000, token);
}
}
}, token);
}
}
}
// RemoteControl.Client - Main form for client application
using System;
using System.Drawing;
using System.Windows.Forms;
namespace RemoteControl.Client
{
public partial class ClientForm : Form
{
private string computerName;
private bool isBeingControlled = false;
private Label lblStatus = new Label();
private Label lblStatusDetail = new Label();
private CheckBox chkAllowControl = new CheckBox();
private NotifyIcon notifyIcon = new NotifyIcon();
public ClientForm(string computerName)
{
this.computerName = computerName;
InitializeComponent();
}
private void InitializeComponent()
{
this.Text = $"Remote Control Client - {computerName}";
this.Size = new Size(400, 300);
this.StartPosition = FormStartPosition.CenterScreen;
this.MinimumSize = new Size(300, 200);
this.FormBorderStyle = FormBorderStyle.FixedSingle;
this.MaximizeBox = false;
this.Icon = SystemIcons.Application;
// Create controls
lblStatus = new Label
{
Dock = DockStyle.Top,
Text = "Waiting for connections...",
Font = new Font("Segoe UI", 12F, FontStyle.Regular, GraphicsUnit.Point, 0),
TextAlign = ContentAlignment.MiddleCenter,
Height = 40
};
lblStatusDetail = new Label
{
Dock = DockStyle.Fill,
Text = "This computer can be controlled remotely.",
Font = new Font("Segoe UI", 9.75F, FontStyle.Regular, GraphicsUnit.Point, 0),
TextAlign = ContentAlignment.TopCenter,
Padding = new Padding(0, 20, 0, 0)
};
chkAllowControl = new CheckBox
{
Dock = DockStyle.Bottom,
Text = "Allow remote control",
Checked = true,
Height = 30,
Padding = new Padding(20, 0, 0, 10)
};
chkAllowControl.CheckedChanged += ChkAllowControl_CheckedChanged;
// Add controls to form
this.Controls.Add(lblStatusDetail);
this.Controls.Add(lblStatus);
this.Controls.Add(chkAllowControl);
// Update status indicator
UpdateStatus();
// Enable minimize to system tray
this.notifyIcon = new NotifyIcon
{
Icon = SystemIcons.Application,
Text = $"Remote Control Client - {computerName}",
Visible = true
};
this.notifyIcon.DoubleClick += NotifyIcon_DoubleClick;
this.Resize += ClientForm_Resize;
this.FormClosing += ClientForm_FormClosing;
}
// Update the status display
private void UpdateStatus()
{
if (chkAllowControl.Checked)
{
if (isBeingControlled)
{
lblStatus.Text = "This computer is being controlled";
lblStatus.ForeColor = Color.Red;
lblStatusDetail.Text = "Someone is currently viewing and controlling this computer remotely.";
}
else
{
lblStatus.Text = "Waiting for connections...";
lblStatus.ForeColor = Color.Green;
lblStatusDetail.Text = "This computer can be controlled remotely.";
}
}
else
{
lblStatus.Text = "Remote control disabled";
lblStatus.ForeColor = Color.Gray;
lblStatusDetail.Text = "This computer cannot be controlled remotely.";
isBeingControlled = false;
}
}
// Event handlers
private void ChkAllowControl_CheckedChanged(object? sender, EventArgs e)
{
UpdateStatus();
// This would update settings to enable/disable listening for connections
}
// Set the controlled state
public void SetControlledState(bool isControlled)
{
if (this.InvokeRequired)
{
this.Invoke(new Action(SetControlledState), isControlled);
return;
}
isBeingControlled = isControlled;
UpdateStatus();
}
// Minimize to system tray
private void ClientForm_Resize(object? sender, EventArgs e)
{
if (this.WindowState == FormWindowState.Minimized)
{
this.Hide();
notifyIcon.ShowBalloonTip(
2000,
"Remote Control Client",
"Application is still running in the system tray.",
ToolTipIcon.Info
);
}
}
// Show form when clicking on tray icon
private void NotifyIcon_DoubleClick(object? sender, EventArgs e)
{
this.Show();
this.WindowState = FormWindowState.Normal;
}
// Clean up on close
private void ClientForm_FormClosing(object? sender, FormClosingEventArgs e)
{
if (e.CloseReason == CloseReason.UserClosing)
{
if (MessageBox.Show(
"Are you sure you want to exit Remote Control Client? " +
"This will prevent others from connecting to your computer.",
"Confirm Exit",
MessageBoxButtons.YesNo,
MessageBoxIcon.Question) == DialogResult.No)
{
e.Cancel = true;
}
}
if (!e.Cancel)
{
notifyIcon.Visible = false;
}
}
}
}
// RemoteControl.Server - Application that can control other computers
using System;
using System.Collections.Generic;
using System.Net;
using System.Net.Sockets;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
using RemoteControl.Core;
namespace RemoteControl.Server
{
public class Program
{
private const int DiscoveryPort = 15000;
private static List availableComputers = new List();
private static CancellationTokenSource? discoveryTokenSource;
[STAThread]
static void Main(string[] args)
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
// Create and start the main form
MainForm mainForm = new MainForm();
mainForm.OnDiscoverComputers += DiscoverComputers;
mainForm.OnConnectToComputer += ConnectToComputer;
Application.Run(mainForm);
}
// Start discovery of computers on the network
private static void DiscoverComputers(MainForm form)
{
Console.WriteLine("Starting discovery...");
availableComputers.Clear();
form.ClearComputerList();
// Cancel any ongoing discovery
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
}
// Create a new cancellation token
discoveryTokenSource = new CancellationTokenSource();
CancellationToken token = discoveryTokenSource.Token;
// Start listening for responses
ListenForDiscoveryResponses(form, token);
// Send discovery broadcast
string computerName = Environment.MachineName;
NetworkUtils.SendDiscoveryBroadcast(DiscoveryPort, computerName);
// Cancel discovery after 5 seconds
discoveryTokenSource.CancelAfter(5000);
}
// Listen for discovery responses
private static void ListenForDiscoveryResponses(MainForm form, CancellationToken token)
{
Task.Run(() => {
using (UdpClient listener = new UdpClient(DiscoveryPort + 1))
{
IPEndPoint endPoint = new IPEndPoint(IPAddress.Any, DiscoveryPort + 1);
try
{
while (!token.IsCancellationRequested)
{
byte[] data = listener.Receive(ref endPoint);
Message message = Message.FromBytes(data);
if (message.Type == MessageType.DiscoverResponse)
{
string computerName = message.SenderName;
string ipAddress = message.Data;
Console.WriteLine($"Discovered computer: {computerName} at {ipAddress}");
RemoteComputer computer = new RemoteComputer
{
Name = computerName,
IpAddress = ipAddress
};
// Add to available computers list
bool alreadyExists = false;
foreach (var comp in availableComputers)
{
if (comp.IpAddress == ipAddress)
{
alreadyExists = true;
break;
}
}
if (!alreadyExists)
{
availableComputers.Add(computer);
form.AddComputer(computer);
}
}
}
}
catch (SocketException ex)
{
Console.WriteLine($"Socket error: {ex.Message}");
}
}
}, token);
}
// Connect to a remote computer
private static void ConnectToComputer(MainForm form, RemoteComputer computer)
{
Console.WriteLine($"Connecting to {computer.Name} at {computer.IpAddress}...");
// This would be expanded to establish a TCP connection
// and start a remote control session
MessageBox.Show($"Connection to {computer.Name} would be established here.",
"Connection", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
}
// Class to represent a remote computer
public class RemoteComputer
{
public string Name { get; set; } = string.Empty;
public string IpAddress { get; set; } = string.Empty;
public override string ToString()
{
return $"{Name} ({IpAddress})";
}
}
}
// RemoteControl.Server - Main form for server application
using System;
using System.Drawing;
using System.Windows.Forms;
namespace RemoteControl.Server
{
public partial class MainForm : Form
{
// Events
public event Action? OnDiscoverComputers;
public event Action? OnConnectToComputer;
// Form controls
private ListBox lstComputers;
private Button btnDiscover;
private Button btnConnect;
public MainForm()
{
// Initialize the controls first
lstComputers = new ListBox();
btnDiscover = new Button();
btnConnect = new Button();
InitializeComponent();
}
private void InitializeComponent()
{
this.Text = "Remote Control";
this.Size = new Size(600, 400);
this.StartPosition = FormStartPosition.CenterScreen;
this.MinimumSize = new Size(400, 300);
// Configure controls
lstComputers = new ListBox
{
Dock = DockStyle.Fill,
Font = new Font("Segoe UI", 9.75F, FontStyle.Regular, GraphicsUnit.Point, 0),
FormattingEnabled = true,
ItemHeight = 20,
Margin = new Padding(4),
Name = "lstComputers"
};
lstComputers.DoubleClick += LstComputers_DoubleClick;
lstComputers.SelectedIndexChanged += LstComputers_SelectedIndexChanged;
btnDiscover = new Button
{
Dock = DockStyle.Top,
Text = "Discover Computers",
Height = 40,
Margin = new Padding(4),
Name = "btnDiscover"
};
btnDiscover.Click += BtnDiscover_Click;
btnConnect = new Button
{
Dock = DockStyle.Bottom,
Text = "Connect",
Height = 40,
Margin = new Padding(4),
Name = "btnConnect"
};
btnConnect.Click += BtnConnect_Click;
Panel panel = new Panel
{
Dock = DockStyle.Fill,
Padding = new Padding(10)
};
// Add controls to form
panel.Controls.Add(lstComputers);
this.Controls.Add(panel);
this.Controls.Add(btnDiscover);
this.Controls.Add(btnConnect);
// Set initial state
btnConnect.Enabled = false;
}
// Add a computer to the list
public void AddComputer(RemoteComputer computer)
{
if (this.InvokeRequired)
{
this.Invoke(new Action(AddComputer), computer);
return;
}
lstComputers.Items.Add(computer);
}
// Clear the computer list
public void ClearComputerList()
{
if (this.InvokeRequired)
{
this.Invoke(new Action(ClearComputerList));
return;
}
lstComputers.Items.Clear();
btnConnect.Enabled = false;
}
// Event handlers
private void BtnDiscover_Click(object? sender, EventArgs e)
{
OnDiscoverComputers?.Invoke(this);
}
private void BtnConnect_Click(object? sender, EventArgs e)
{
if (lstComputers.SelectedItem is RemoteComputer computer)
{
OnConnectToComputer?.Invoke(this, computer);
}
else
{
MessageBox.Show("Please select a computer to connect to.",
"No Computer Selected", MessageBoxButtons.OK, MessageBoxIcon.Warning);
}
}
private void LstComputers_DoubleClick(object? sender, EventArgs e)
{
if (lstComputers.SelectedItem is RemoteComputer computer)
{
OnConnectToComputer?.Invoke(this, computer);
}
}
private void LstComputers_SelectedIndexChanged(object? sender, EventArgs e)
{
btnConnect.Enabled = lstComputers.SelectedItem != null;
}
}
}
// RemoteControl.Core - Shared components between client and server
using System;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
namespace RemoteControl.Core
{
// Message types for communication between client and server
public enum MessageType
{
Discover, // Discover computers on network
DiscoverResponse, // Response to discovery
ConnectRequest, // Request to control a computer
ConnectResponse, // Response to connection request
ScreenData, // Screen capture data
InputEvent, // Input events (mouse/keyboard)
Disconnect // Disconnect from session
}
// Base message class for all messages
public class Message
{
public MessageType Type { get; set; }
public string SenderName { get; set; }
public string Data { get; set; }
public Message(MessageType type, string senderName = "", string data = "")
{
Type = type;
SenderName = senderName ?? string.Empty;
Data = data ?? string.Empty;
}
// Convert message to byte array for transmission
public byte[] ToBytes()
{
string json = System.Text.Json.JsonSerializer.Serialize(this);
return Encoding.UTF8.GetBytes(json);
}
// Create message from received byte array
public static Message FromBytes(byte[] data)
{
string json = Encoding.UTF8.GetString(data);
return System.Text.Json.JsonSerializer.Deserialize(json) ??
new Message(MessageType.Discover);
}
}
// Network utility class for client and server
public class NetworkUtils
{
// Send a UDP broadcast to discover computers on the network
public static void SendDiscoveryBroadcast(int port, string computerName)
{
using (UdpClient client = new UdpClient())
{
client.EnableBroadcast = true;
Message message = new Message(
MessageType.Discover,
computerName,
GetLocalIPAddress()
);
byte[] data = message.ToBytes();
IPEndPoint endpoint = new IPEndPoint(IPAddress.Broadcast, port);
client.Send(data, data.Length, endpoint);
}
}
// Listen for discovery broadcasts
public static Task ListenForDiscovery(int port, CancellationToken token)
{
return Task.Run(() => {
using (UdpClient listener = new UdpClient(port))
{
IPEndPoint endPoint = new IPEndPoint(IPAddress.Any, port);
try
{
while (!token.IsCancellationRequested)
{
byte[] data = listener.Receive(ref endPoint);
Message message = Message.FromBytes(data);
if (message.Type == MessageType.Discover)
{
return message;
}
}
}
catch (SocketException ex)
{
Console.WriteLine($"Socket error: {ex.Message}");
}
return null;
}
}, token);
}
// Send a response to a discovery broadcast
public static void SendDiscoveryResponse(IPEndPoint targetEndPoint, int port, string computerName)
{
using (UdpClient client = new UdpClient())
{
Message message = new Message(
MessageType.DiscoverResponse,
computerName,
GetLocalIPAddress()
);
byte[] data = message.ToBytes();
client.Send(data, data.Length, targetEndPoint);
}
}
// Get the local IP address
public static string GetLocalIPAddress()
{
var host = Dns.GetHostEntry(Dns.GetHostName());
foreach (var ip in host.AddressList)
{
if (ip.AddressFamily == AddressFamily.InterNetwork)
{
return ip.ToString();
}
}
return "127.0.0.1"; // Fallback to localhost
}
}
}
05.png)
There's still an issue with class naming. It appears that the autogenerated Form1.cs files are conflicting with our custom forms. This is a common issue when using Visual Studio templates. Let's fix it:
1. For the **Server** project:
- There seems to be a naming conflict - you have both `Form1.cs` and `MainForm.cs`. The compiler is confused because both classes are trying to define forms with similar functionality.
- You should either:
a) Delete the existing Form1.cs and Form1.Designer.cs files completely, or
b) Rename the class inside Form1.cs to MainForm and update any references
2. For the **Client** project:
- Similarly, you have both `Form1.cs` and should be using `ClientForm.cs`
- Either delete the Form1.cs files or rename the class
Let's take the simplest approach - deleting the default Form1 files:
1. In RemoteControl.Server folder:
- Delete Form1.cs and Form1.Designer.cs
- Make sure Program.cs is correctly pointing to MainForm, not Form1
2. In RemoteControl.Client folder:
- Delete Form1.cs and Form1.Designer.cs
- Make sure Program.cs is correctly pointing to ClientForm, not Form1
Another issue is with the `Message` class - it's looking for a "Data" property but can't find it. Make sure your Message.cs file in the Core project has the complete code I provided.
Here are the steps to clean up the project:
1. Close Visual Studio Code
2. Manually delete these files:
- RemoteControl.Server/Form1.cs and Form1.Designer.cs
- RemoteControl.Client/Form1.cs and Form1.Designer.cs
3. Create new files with proper names:
- RemoteControl.Server/MainForm.cs
- RemoteControl.Client/ClientForm.cs
4. Copy the updated code from my artifacts into these files
5. Reopen Visual Studio Code and try building again
If deleting files seems risky, you can also try a fresh project:
```
mkdir RemoteControlNew
cd RemoteControlNew
dotnet new sln -n RemoteControl
dotnet new classlib -n RemoteControl.Core
dotnet new winforms -n RemoteControl.Server
dotnet new winforms -n RemoteControl.Client
dotnet sln add RemoteControl.Core/RemoteControl.Core.csproj
dotnet sln add RemoteControl.Server/RemoteControl.Server.csproj
dotnet sln add RemoteControl.Client/RemoteControl.Client.csproj
dotnet add RemoteControl.Server/RemoteControl.Server.csproj reference RemoteControl.Core/RemoteControl.Core.csproj
dotnet add RemoteControl.Client/RemoteControl.Client.csproj reference RemoteControl.Core/RemoteControl.Core.csproj
```
Then add proper files with the updated code before trying to build.
06.png)
You're right - programming definitely requires patience! We're making progress though. The current errors show an ambiguous reference between `RemoteControl.Core.Message` and `System.Windows.Forms.Message`. This is a classic namespace conflict.
Let's fix this issue by explicitly specifying which Message class we want to use. Here's what we need to do:
The main issue you're facing is a namespace conflict. The Windows Forms library has its own `Message` class, which is conflicting with our custom `Message` class in the RemoteControl.Core namespace.
Let's fix this by using namespace aliases:
1. First, replace the content of your `Program.cs` in the **RemoteControl.Client** project with the code from "Updated RemoteControl Client Program.cs (with namespace fix)"
2. Then, replace the content of your `Program.cs` in the **RemoteControl.Server** project with the code from "Updated RemoteControl Server Program.cs (with namespace fix)"
These changes add namespace aliases to clearly specify which Message class we're referring to:
```csharp
// Use alias to avoid namespace conflicts
using CoreMessage = RemoteControl.Core.Message;
using CoreMessageType = RemoteControl.Core.MessageType;
```
Then we modify all references to use these alias names.
Also, there's an issue with the MainForm class - the error "Type 'MainForm' already defines a member called 'LstComputers_DoubleClick' with the same parameter types" suggests there's a duplicate method. This could happen if:
1. You still have both Form1.cs and MainForm.cs containing similar code
2. The Designer-generated code is conflicting with our custom code
If you're still having issues after these changes, I recommend:
1. Creating a completely fresh project in a new directory
2. Copying the updated code files one by one
These kinds of conflicts are common when working with Windows Forms projects, especially when naming forms and modifying auto-generated code.
// RemoteControl.Client - Application that can be controlled by the server
using System;
using System.Net;
using System.Net.Sockets;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
// Use alias to avoid namespace conflicts
using CoreMessage = RemoteControl.Core.Message;
using CoreMessageType = RemoteControl.Core.MessageType;
namespace RemoteControl.Client
{
public class Program
{
private const int DiscoveryPort = 15000;
private static CancellationTokenSource? discoveryTokenSource;
private static string computerName = string.Empty;
[STAThread]
static void Main(string[] args)
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
// Get computer name
computerName = Environment.MachineName;
// Create and start the main form
ClientForm clientForm = new ClientForm(computerName);
// Start listening for discovery broadcasts
StartDiscoveryListener();
Application.Run(clientForm);
// Clean up on exit
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
discoveryTokenSource.Dispose();
}
}
// Start listening for discovery broadcasts
private static void StartDiscoveryListener()
{
Console.WriteLine("Starting discovery listener...");
// Cancel any ongoing discovery
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
discoveryTokenSource.Dispose();
}
// Create a new cancellation token
discoveryTokenSource = new CancellationTokenSource();
CancellationToken token = discoveryTokenSource.Token;
// Start listening for discovery broadcasts
Task.Run(async () => {
while (!token.IsCancellationRequested)
{
try
{
// Listen for discovery broadcasts
CoreMessage? message = await RemoteControl.Core.NetworkUtils.ListenForDiscovery(DiscoveryPort, token);
if (message != null)
{
Console.WriteLine($"Received discovery from {message.SenderName}");
// Get the sender's endpoint
IPEndPoint senderEndPoint = new IPEndPoint(
IPAddress.Parse(message.Data),
DiscoveryPort + 1
);
// Send a response
RemoteControl.Core.NetworkUtils.SendDiscoveryResponse(
senderEndPoint,
DiscoveryPort,
computerName
);
}
}
catch (Exception ex)
{
Console.WriteLine($"Error in discovery listener: {ex.Message}");
await Task.Delay(1000, token);
}
}
}, token);
}
}
}
// RemoteControl.Server - Application that can control other computers
using System;
using System.Collections.Generic;
using System.Net;
using System.Net.Sockets;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
// Use alias to avoid namespace conflicts
using CoreMessage = RemoteControl.Core.Message;
using CoreMessageType = RemoteControl.Core.MessageType;
namespace RemoteControl.Server
{
public class Program
{
private const int DiscoveryPort = 15000;
private static List availableComputers = new List();
private static CancellationTokenSource? discoveryTokenSource;
[STAThread]
static void Main(string[] args)
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
// Create and start the main form
MainForm mainForm = new MainForm();
mainForm.OnDiscoverComputers += DiscoverComputers;
mainForm.OnConnectToComputer += ConnectToComputer;
Application.Run(mainForm);
}
// Start discovery of computers on the network
private static void DiscoverComputers(MainForm form)
{
Console.WriteLine("Starting discovery...");
availableComputers.Clear();
form.ClearComputerList();
// Cancel any ongoing discovery
if (discoveryTokenSource != null)
{
discoveryTokenSource.Cancel();
}
// Create a new cancellation token
discoveryTokenSource = new CancellationTokenSource();
CancellationToken token = discoveryTokenSource.Token;
// Start listening for responses
ListenForDiscoveryResponses(form, token);
// Send discovery broadcast
string computerName = Environment.MachineName;
RemoteControl.Core.NetworkUtils.SendDiscoveryBroadcast(DiscoveryPort, computerName);
// Cancel discovery after 5 seconds
discoveryTokenSource.CancelAfter(5000);
}
// Listen for discovery responses
private static void ListenForDiscoveryResponses(MainForm form, CancellationToken token)
{
Task.Run(() => {
using (UdpClient listener = new UdpClient(DiscoveryPort + 1))
{
IPEndPoint endPoint = new IPEndPoint(IPAddress.Any, DiscoveryPort + 1);
try
{
while (!token.IsCancellationRequested)
{
byte[] data = listener.Receive(ref endPoint);
CoreMessage message = CoreMessage.FromBytes(data);
if (message.Type == CoreMessageType.DiscoverResponse)
{
string computerName = message.SenderName;
string ipAddress = message.Data;
Console.WriteLine($"Discovered computer: {computerName} at {ipAddress}");
RemoteComputer computer = new RemoteComputer
{
Name = computerName,
IpAddress = ipAddress
};
// Add to available computers list
bool alreadyExists = false;
foreach (var comp in availableComputers)
{
if (comp.IpAddress == ipAddress)
{
alreadyExists = true;
break;
}
}
if (!alreadyExists)
{
availableComputers.Add(computer);
form.AddComputer(computer);
}
}
}
}
catch (SocketException ex)
{
Console.WriteLine($"Socket error: {ex.Message}");
}
}
}, token);
}
// Connect to a remote computer
private static void ConnectToComputer(MainForm form, RemoteComputer computer)
{
Console.WriteLine($"Connecting to {computer.Name} at {computer.IpAddress}...");
// This would be expanded to establish a TCP connection
// and start a remote control session
MessageBox.Show($"Connection to {computer.Name} would be established here.",
"Connection", MessageBoxButtons.OK, MessageBoxIcon.Information);
}
}
// Class to represent a remote computer
public class RemoteComputer
{
public string Name { get; set; } = string.Empty;
public string IpAddress { get; set; } = string.Empty;
public override string ToString()
{
return $"{Name} ({IpAddress})";
}
}
}
07.png)
// [1st Code block here]
function example() {
console.log("This is example code");
}
// [2nd Code block here]
function anotherExample() {
return "More example code";
}
// [3rd Code block here]
function yetAnotherExample() {
return "Even more example code";
}
// [4th Code block here]
function yetAgainAnotherExample() {
return "And even more example code";
}
// [5th Code block here]
function yetAgainAnotherExample() {
return "And even more example code";
}
// [6th Code block here]
function yetAgainAnotherExample() {
return "And even more example code";
}
